wren::RenderTarget Class Reference

#include <render_target.hpp>

Collaboration diagram for wren::RenderTarget:

Public Member Functions
auto	resize (const std::shared_ptr< Context > &ctx, const math::Vec2f &new_size) -> expected< void >
auto	view () const
auto	view (const ::vk::ImageView &view)
auto	format () const
auto	format (const ::vk::Format &format)
auto	size () const
auto	size (const math::Vec2f &size)
auto	sample_count () const
auto	final_layout () const
auto	final_layout (const ::vk::ImageLayout &layout)
auto	usage () const
auto	render_finished_semaphore () const

Static Public Member Functions
static auto	create (const std::shared_ptr< Context > &ctx) -> expected< std::shared_ptr< RenderTarget > >
	Craete a RenderTarget object with all defaults for a colour target.
static auto	create_depth (const std::shared_ptr< Context > &ctx) -> expected< std::shared_ptr< RenderTarget > >
	Create e render target to be used as a depth target.
static auto	create (const math::Vec2f &size, ::vk::Format format, ::vk::SampleCountFlagBits sample_count, ::vk::ImageView image_view, ::vk::ImageUsageFlags image_usage) -> expected< std::shared_ptr< RenderTarget > >

Private Member Functions
	RenderTarget ()=default

Private Attributes
std::function< expected< void >(const RenderTarget *)>	transition_fn_
math::Vec2f	size_
::vk::Semaphore	render_finished_semaphore_
::vk::SampleCountFlagBits	sample_count_
::vk::Format	format_
std::optional< vk::Image >	image_
::vk::ImageView	view_
::vk::ImageUsageFlags	image_usage_
::vk::ImageLayout	final_layout_ = ::vk::ImageLayout::ePresentSrcKHR
::vk::ImageAspectFlags	aspect_

Constructor & Destructor Documentation

RenderTarget()

wren::RenderTarget::RenderTarget ( )

privatedefault

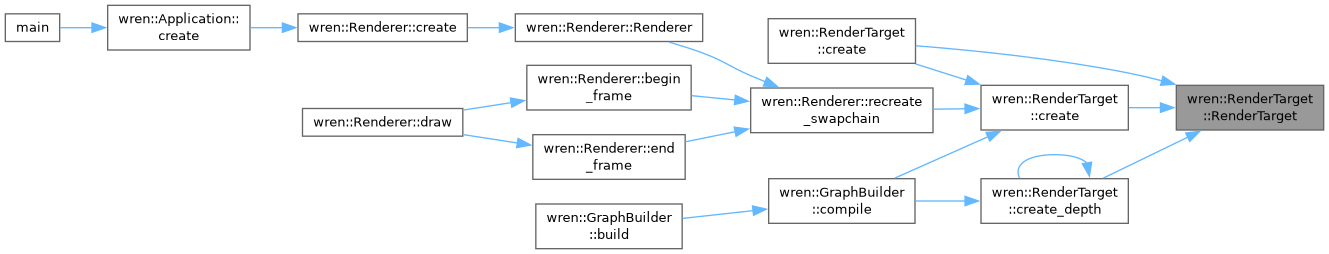

Here is the caller graph for this function:

Member Function Documentation

create() [1/2]

auto wren::RenderTarget::create ( const math::Vec2f & size, ::vk::Format format, ::vk::SampleCountFlagBits sample_count, ::vk::ImageView image_view, ::vk::ImageUsageFlags image_usage ) -> expected< std::shared_ptr< RenderTarget > >

static

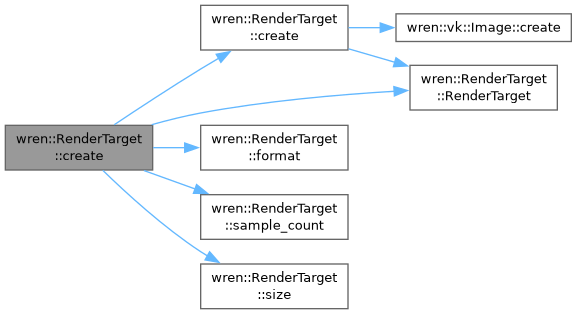

Here is the call graph for this function:

create() [2/2]

auto wren::RenderTarget::create ( const std::shared_ptr< Context > & ctx ) -> expected< std::shared_ptr< RenderTarget > >

static

Craete a RenderTarget object with all defaults for a colour target.

Parameters

ctx	The full application context

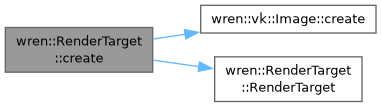

Here is the call graph for this function:

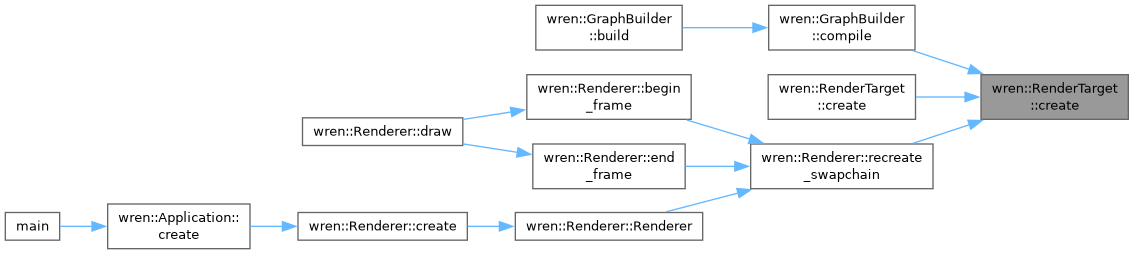

Here is the caller graph for this function:

create_depth()

auto wren::RenderTarget::create_depth ( const std::shared_ptr< Context > & ctx ) -> expected< std::shared_ptr< RenderTarget > >

static

Create e render target to be used as a depth target.

Parameters

ctx	the full application context

Returns

On success a shared_ptr to the created depth RenderTarget or an error

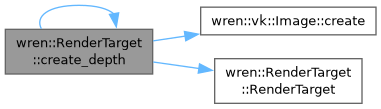

Here is the call graph for this function:

Here is the caller graph for this function:

final_layout() [1/2]

auto wren::RenderTarget::final_layout ( ) const

inlinenodiscard

final_layout() [2/2]

auto wren::RenderTarget::final_layout ( const ::vk::ImageLayout & layout )

inline

format() [1/2]

auto wren::RenderTarget::format ( ) const

inlinenodiscard

Here is the caller graph for this function:

format() [2/2]

auto wren::RenderTarget::format ( const ::vk::Format & format )

inline

Here is the call graph for this function:

render_finished_semaphore()

auto wren::RenderTarget::render_finished_semaphore ( ) const

inlinenodiscard

resize()

auto wren::RenderTarget::resize	(	const std::shared_ptr< Context > &	ctx,
		const math::Vec2f &	new_size ) -> expected< void >

Here is the call graph for this function:

Here is the caller graph for this function:

sample_count()

auto wren::RenderTarget::sample_count ( ) const

inlinenodiscard

Here is the caller graph for this function:

size() [1/2]

auto wren::RenderTarget::size ( ) const

inlinenodiscard

Here is the caller graph for this function:

size() [2/2]

auto wren::RenderTarget::size ( const math::Vec2f & size )

inline

Here is the call graph for this function:

usage()

auto wren::RenderTarget::usage ( ) const

inlinenodiscard

view() [1/2]

auto wren::RenderTarget::view ( ) const

inlinenodiscard

Here is the caller graph for this function:

view() [2/2]

auto wren::RenderTarget::view ( const ::vk::ImageView & view )

inline

Here is the call graph for this function:

Member Data Documentation

aspect_

::vk::ImageAspectFlags wren::RenderTarget::aspect_

private

final_layout_

::vk::ImageLayout wren::RenderTarget::final_layout_ = ::vk::ImageLayout::ePresentSrcKHR

private

format_

::vk::Format wren::RenderTarget::format_

private

image_

std::optional<vk::Image> wren::RenderTarget::image_

private

image_usage_

::vk::ImageUsageFlags wren::RenderTarget::image_usage_

private

render_finished_semaphore_

::vk::Semaphore wren::RenderTarget::render_finished_semaphore_

private

sample_count_

::vk::SampleCountFlagBits wren::RenderTarget::sample_count_

private

size_

math::Vec2f wren::RenderTarget::size_

private

transition_fn_

std::function<expected<void>(const RenderTarget*)> wren::RenderTarget::transition_fn_

private

view_

::vk::ImageView wren::RenderTarget::view_

private

---

The documentation for this class was generated from the following files:

• wren/include/wren/render_target.hpp
• wren/src/render_target.cpp
